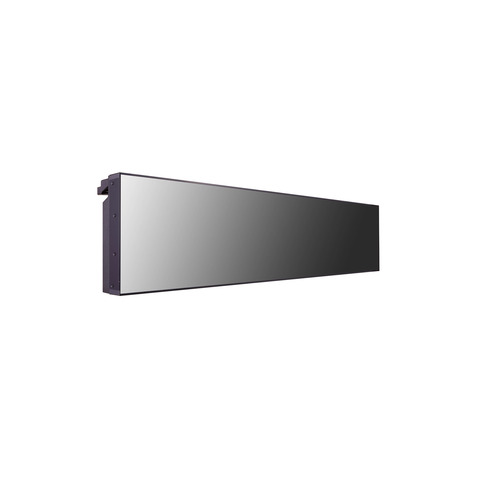

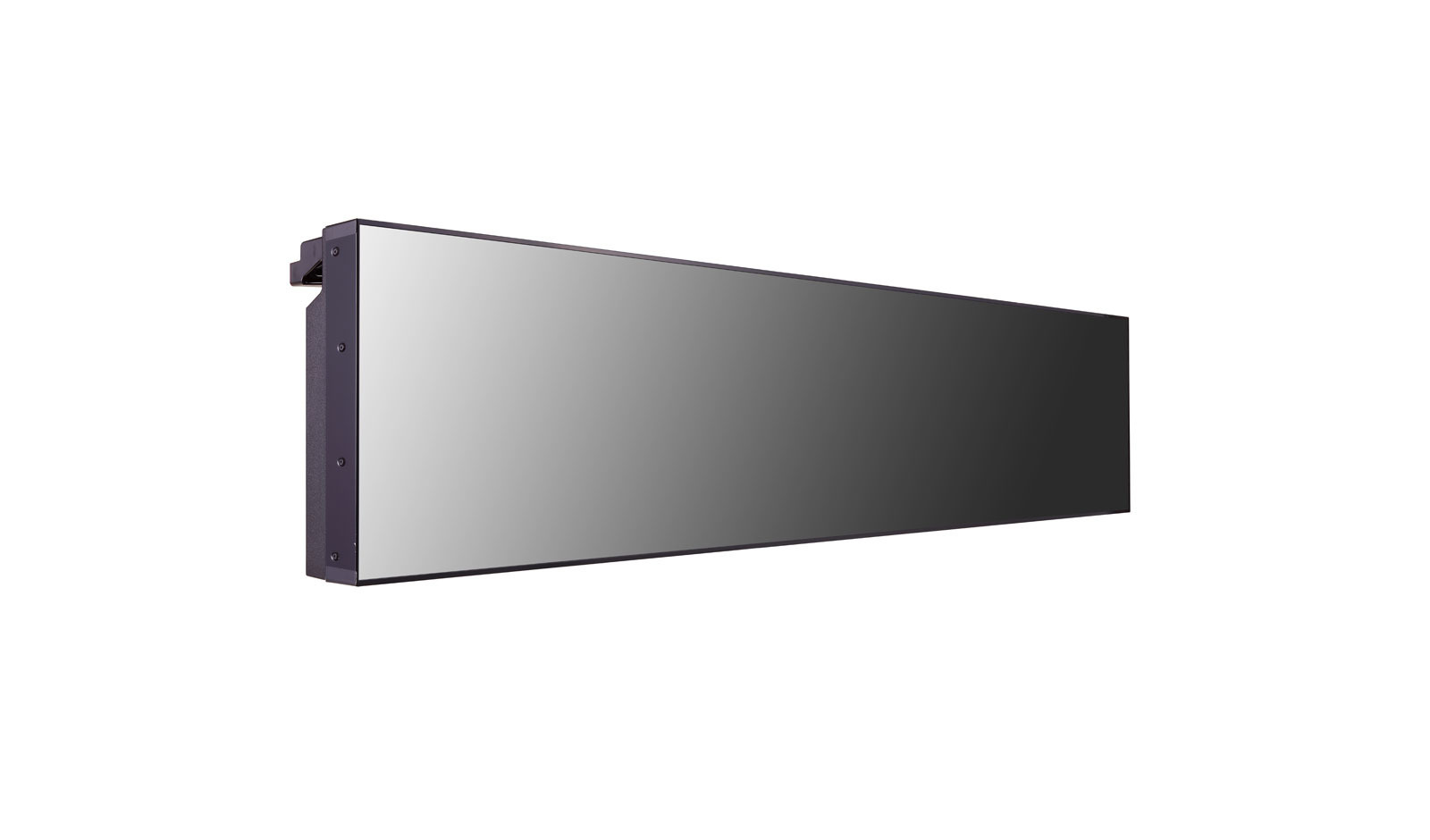

New Design Configuration
- Ultra HD Resolution: (3840 x 600), large screens deliver an immersive viewing experience.
- 58:9 Extended Wide Format: Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.
Multiple Screens
4 Divided PBP in Landscape or Portrait The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.
Multiple Content Creation
Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.
Tiling Scene with Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain confi guration.
LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update fi rmware.

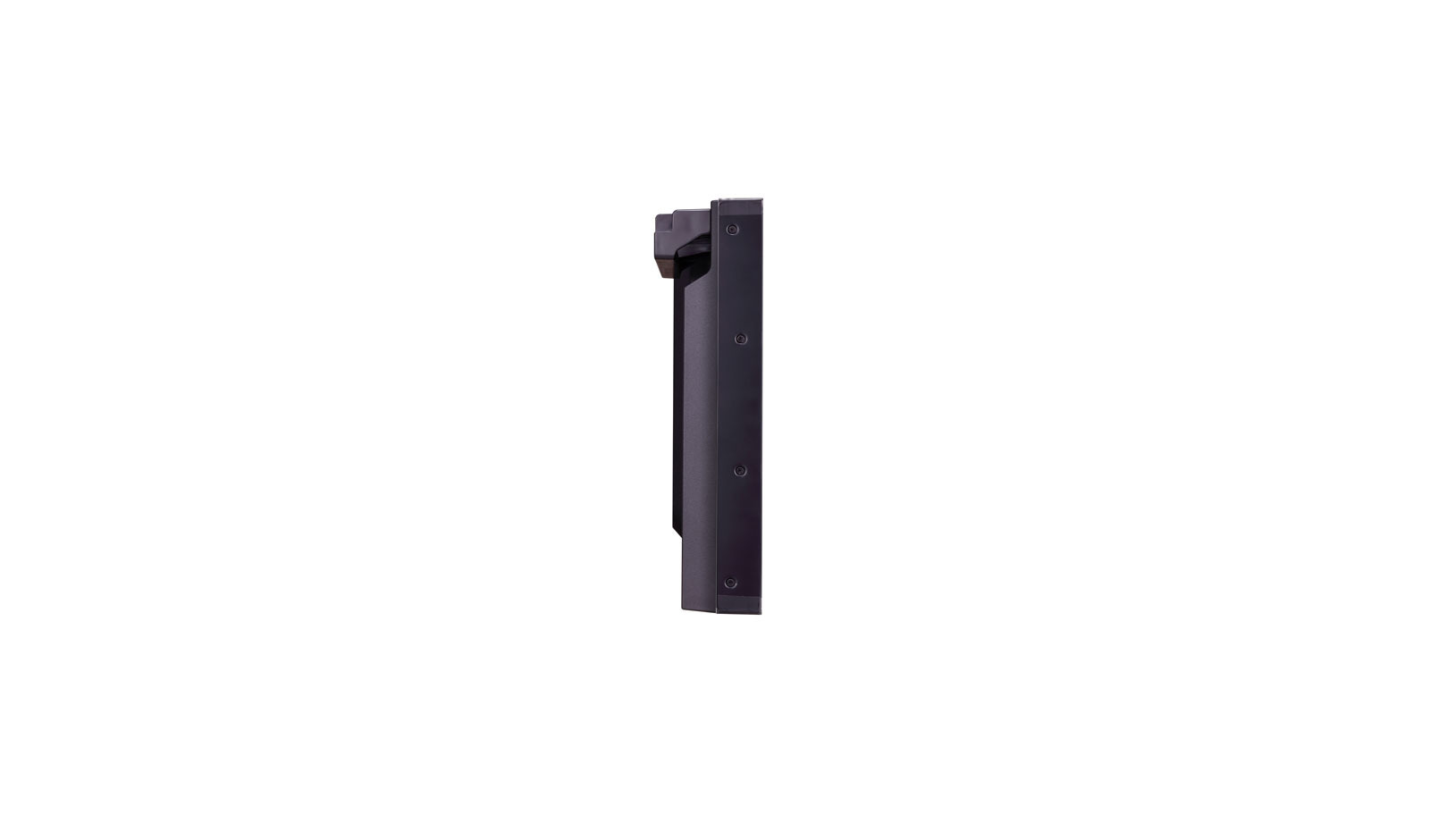

Side Bracket / Classified Port
This product supports side brackets for buried installations. The classified in/out port prevents errors when connecting a daisy chain.
Dimension
Connectivity
CNTech là nhà phân phối màn hình quảng cáo uy tín, chất lượng tại thị trường Việt Nam. Với nhiều năm kinh nghiệm trong lĩnh vực cùng với đội ngũ nhân viên tư vấn, kỹ thuật được đào tạo và huấn luyện tốt chắc chắn sẽ mang đến cho bạn một sự trải nghiệm về phong cách phục vụ chuyên nghiệp và tận tình nhất.
CNTech Digital Signage Solution
Liên hệ với chúng tôi để nhận được hỗ trợ nhanh và tốt nhất: 0909 39 29 38
Email: sales@cntech.com.vn
|
Panel |
86BH5C |
86BH7C |
|
Screen Size |
86 Inch |
86 Inch |
|
Panel Technology |
IPS | IPS |
|
Aspect Ratio |
58:9 | 58:9 |
|
Native Resolution |
3,840 x 600 (UHD) |
3,840 x 600 (UHD) |
|
Brightness(Typ., cd/m²) |
500 nit |
700 nit |
|
Contrast Ratio |
1,100:1 | 1,100:1 |
|
Viewing Angle (H x V) |
178 x 178 | 178 x 178 |
|
Response Time |
8ms (G to G BW) Typ | 8ms (G to G BW) Typ |
|
Surface Treatment (Haze) |
AGP (10% Haze) | AGP (10% Haze) |
|
Life Time (Typ.) |
50,000 Hrs | 50,000 Hrs |
|
Guaranteed Operating Hours |
18 Hrs | 18 Hrs |
|
Orientation |
Landscape & Portrait |
Landscape & Portrait |
|
Connectivity |
||
|
Input |
HDMI, DP, OPS, DVI-D, USB 2.0, USB 3.0, SD Card |
HDMI, DP, OPS, DVI-D, USB 2.0, USB 3.0, SD Card |
|
Output |
Analog Audio |
Analog Audio |
|
External Control |
RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio |
RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio |
|
Physical Specification |
||
|
Bezel Color |
Black | Black |
|
Bezel Width |
4.4 mm (L/R), 5.9 mm (T/B) |
4.4 mm (L/R), 5.9 mm (T/B) |
|
Monitor Dimension (W x H x D) |
2,158.3 x 348.5 x 81.7 mm |
2,158.3 x 348.5 x 81.7 mm |
|
Weight (Head) |
20.5 Kg |
20.5 Kg |
|
Carton Dimensions (W x H x D) |
2,290 x 228 x 599 mm |
2,290 x 228 x 599 mm |
|
Packed Weight |
38.2 Kg |
38.2 Kg |
|
VESA™ Standard Mount Interface |
600 x 200 mm |
600 x 200 mm |
|
Environment Conditions |
|
|
|
Operation Temperature |
0°C to 40°C |
0°C to 40°C |
|
Operation Humidity |
10 % to 80 % |
10 % to 80 % |
|
Power Consumption |
|
|
|
Power Supply |
100-240V~, 50/60Hz |
100-240V~, 50/60Hz |
|
Power Type |
Built-In Power |
Built-In Power |
|
Typ. / Max |
180W / 220W |
215W / 255W |
|
Standard (Certification) |
||
|
Safety |
UL / cUL / CB / TUV / KC |
UL / cUL / CB / TUV / KC |
|
EMC |
FCC Class "A" / CE / KC |
FCC Class "A" / CE / KCC |
|
ErP / Energy Star |
NA / NA |
NA / NA |
|
Media Player Compatibility |
||
|
OPS type compatible |
Yes |
Yes |
|
External Media player Attatchable |
No |
No |
|
Accessory |
|
|
|
Basic |
Remote Controller (2ea Batteries included), |
Remote Controller (2ea Batteries included), |
|
Optional |
AN-WF500 (Wi-Fi USB Dongle), MP700, |
AN-WF500 (Wi-Fi USB Dongle), MP700, |
